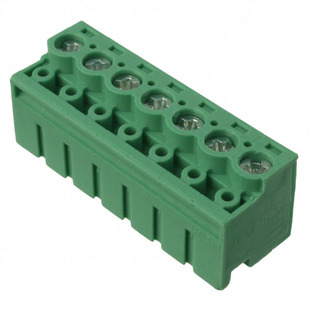

Onderdeel nummer | 1755635 | Fabrikant | Phoenix Contact |
---|---|---|---|
Beschrijving | TERM BLOCK PLUG 7POS 90DEG 5MM | Leid Free Status / RoHS Status | Loodvrij / RoHS-conform |
hoeveelheid beschikbaar | 81674 pcs | Data papier | 1755635.pdf |
Wire Strip Lengte | 6mm | Wire Meter of Bereik - mm² | 0.2-2.5mm² |
Wire Gauge of Range - AWG | 14-28 AWG | Voltage - UL | 300V |
Voltage - IEC | 630V | Type | Plug for Unshrouded Header |
Moment - Schroef | 0.35-0.4 Nm (3.1-3.5 Lb-In) | Klemtype | Screw - Clamping Yoke (Tension Sleeve) |
Serie | COMBICON PT | Screw Grootte | - |
Posities Per Level | 7 | Plug Wire Entry | 90° |
toonhoogte | 0.197" (5.00mm) | Packaging | Bulk |
Andere namen | 277-2236 PT 1.5/7-PH-5.0 PT1,5/7-PH-5,0 |
Temperatuur | - |
Aantal posities | 7 | Aantal Levels | 1 |
montage Type | Free Hanging (In-Line) | Vochtgevoeligheidsniveau (MSL) | 1 (Unlimited) |
Materiaal Ontvlambaarheidsklasse | UL94 V-0 | Fabrikant Standaard Levertijd | 2 Weeks |
Loodvrije status / RoHS-status | Lead free / RoHS Compliant | Isolatiehoogte | 0.518" (13.15mm) |
Ingress Protection | - | Materiaal behuizing | Polyamide (PA), Nylon |
header Orientation | - | Kenmerken | - |
gedetailleerde beschrijving | 7 Position Terminal Block Plug for Unshrouded Header 0.197" (5.00mm) 90° Free Hanging (In-Line) | Current - UL | 10A |
Current - IEC | 10A | Contact Staart Lengte | - |
Neem contact op met parfumafwerking | Tin | Contact Material | - |
Kleur | Green |
